Onesport W77 Electric Bike – Power, Comfort, and Reliability in One Ride

The Onesport W77 is a premium electric bike engineered for riders who demand durability, performance, and style in one complete package. With a full iron frame and robust construction, this e-bike is built to handle urban streets, rugged paths, and long-distance rides with ease. Designed for adults between 160 cm and 200 cm in height, the W77 offers a versatile and comfortable riding experience for a wide range of riders.

Strong Frame & Reliable Build

The full iron frame ensures maximum strength and stability, giving the bike exceptional longevity. Its sturdy construction not only supports heavier use but also contributes to a smoother and more controlled ride. While the W77 is not foldable, its frame design prioritizes balance, safety, and rigidity—qualities essential for both commuting and leisure rides.

Powerful Motor & Long-Lasting Battery

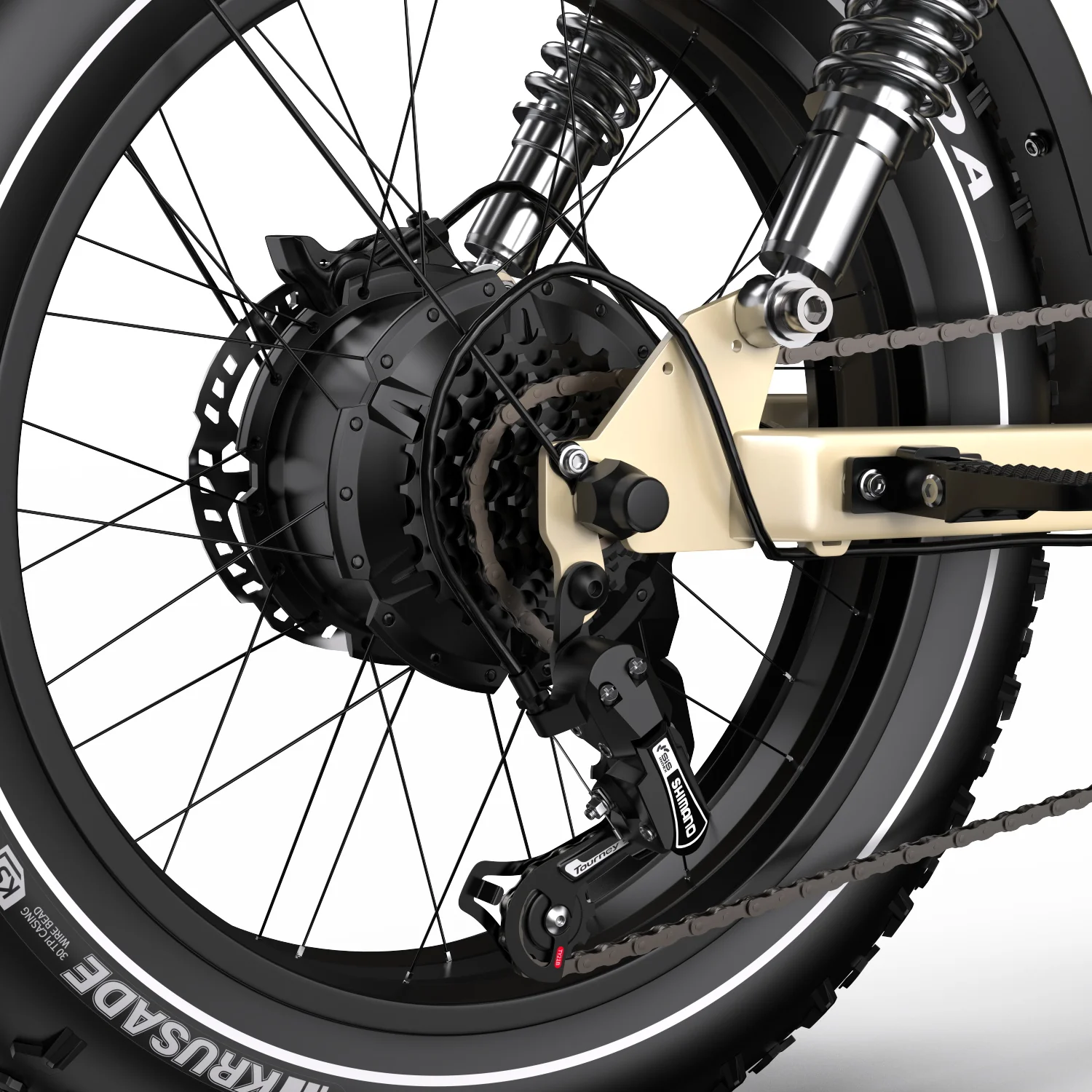

At the heart of the Onesport W77 is a 48V 250w peak 500W motor delivering an impressive 65NM of torque, providing the extra push you need for uphill climbs and quick acceleration. Powered by a 48V 18AH battery, the bike offers a range of 35–45 km in pure electric mode and an extended 80–90 km in pedal-assist mode, ensuring you can cover long distances without worrying about recharging frequently. The battery is paired with a 54.6V 2A charger, requiring 8–9 hours for a full charge, perfect for overnight charging.

Smart Features & App Connectivity

Equipped with a TW35 display featuring Bluetooth connectivity, the W77 can connect directly to the Onesport app. This integration allows you to track your speed, battery level, and trip statistics in real-time, giving you a smarter and more interactive riding experience.

Smooth Handling & Suspension

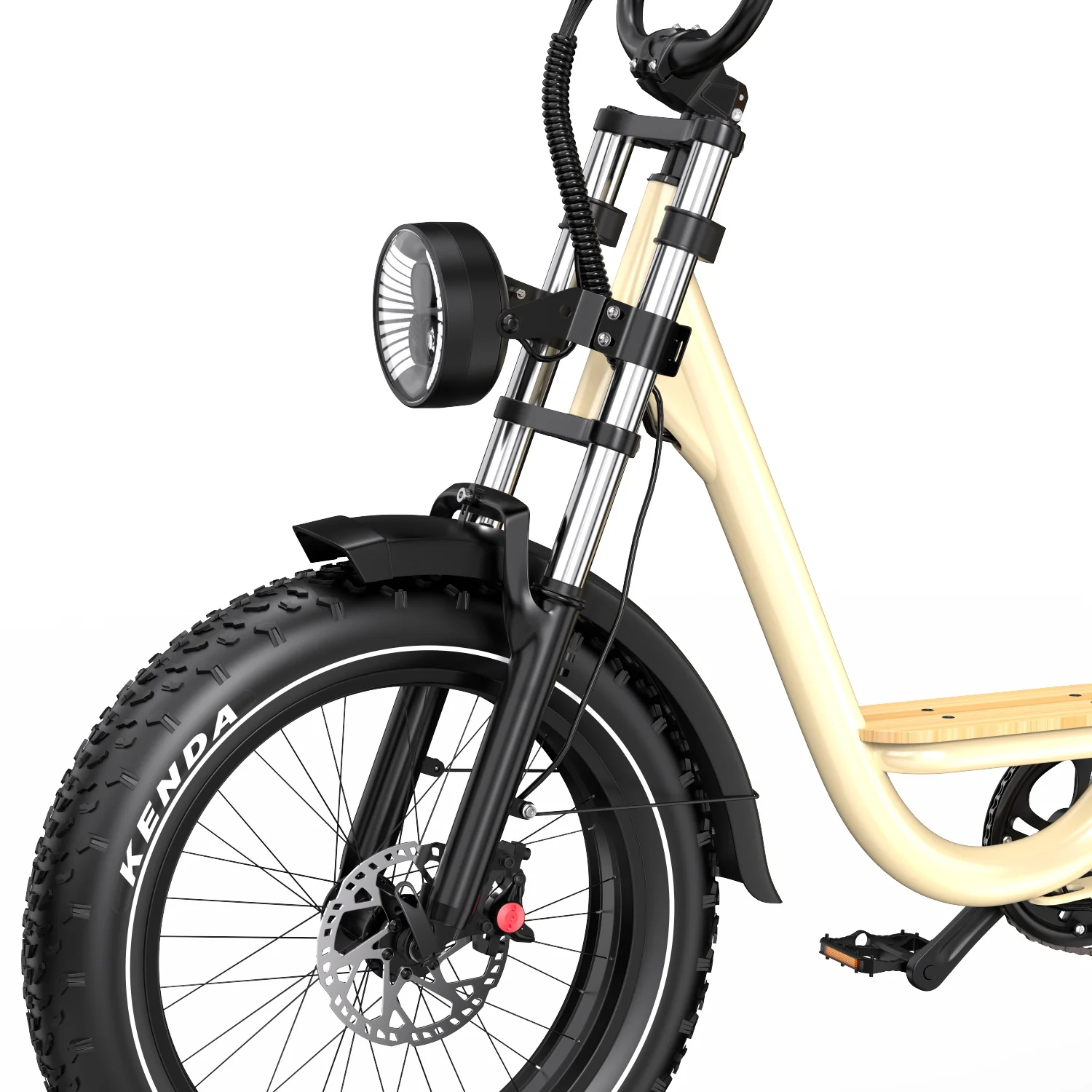

For front suspension, the bike features an aluminum shoulder fork with iron legs offering 135 mm of travel, absorbing shocks from bumps and rough terrain. The rear suspension uses a spring suspension system (300 lbs) to further enhance comfort, although it does not have a lockout function. Together, these suspension components provide a balanced ride whether you’re on city streets or off-road trails.

Performance & Speed

The W77 is equipped with a 1x7-speed gear system, allowing you to adapt to different riding conditions easily. In terms of speed:

• Maximum speed (default limit): 25 km/h

• Turning handlebar speed: 25 km/h

• Maximum speed under load (after deceleration): 45 km/h

• Maximum speed without load: 45 km/h

You can choose from 4 gear modes (0–3) to control power delivery according to your needs.

Safety & Control

Stopping power is handled by front and rear hydraulic disc brakes with 2-piston calipers and 160 mm rotors (2.3 mm thickness), ensuring responsive braking in all weather conditions. The 20x4.0-inch Kenda tires with 30 TPI casing and reflective strips provide excellent grip and visibility for safer night rides.

Lighting & Accessories

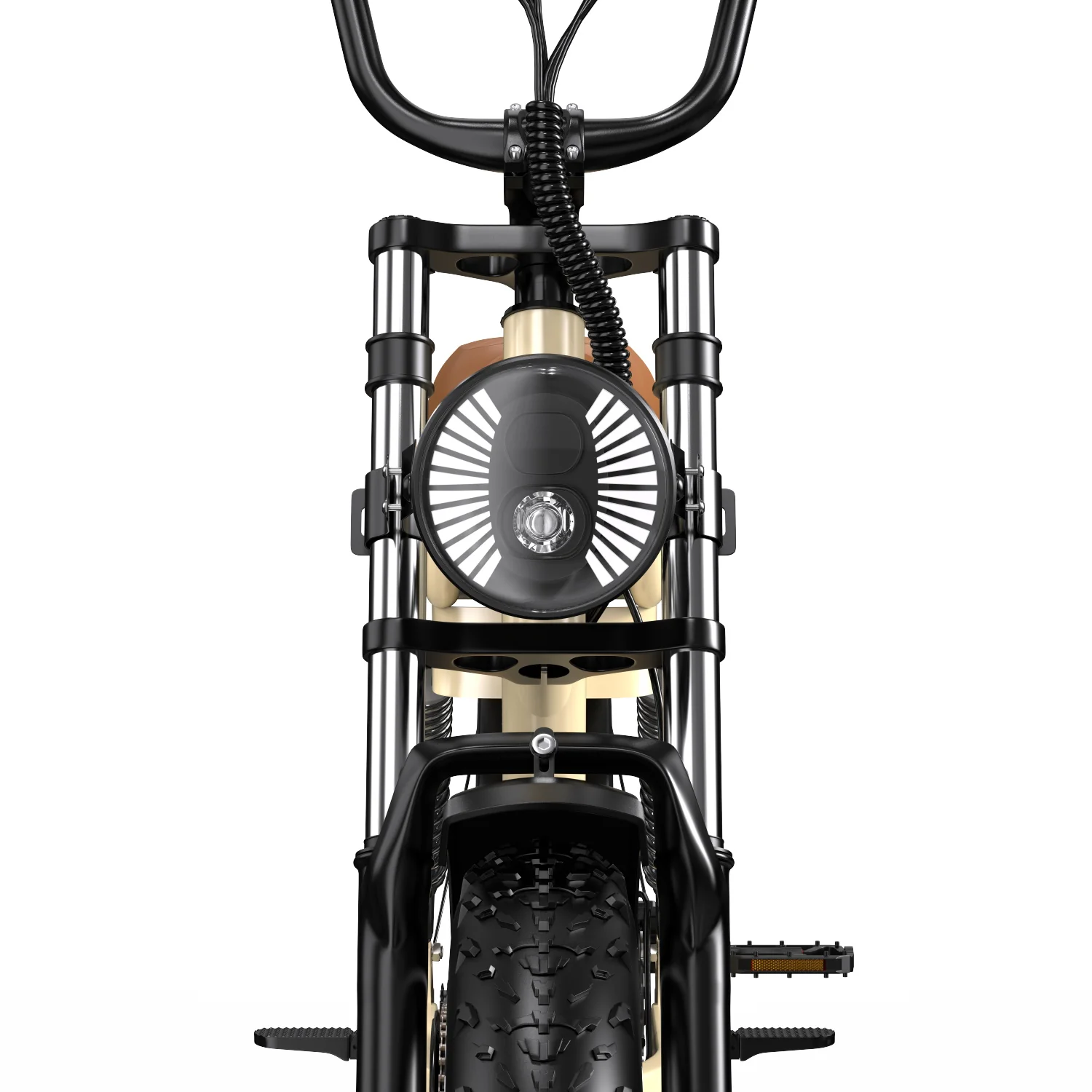

The W77 comes with a K-code headlight and a rear light (without brake brightening). For added practicality, it includes plastic full-coverage front and rear mudguards, keeping you clean in wet conditions.

Climbing Ability & Load Capacity

Thanks to its powerful motor and torque, the W77 can handle inclines up to 30°. It supports a maximum rider load of 90 kg, making it suitable for most adults.

Package Contents

When you purchase the Onesport W77, you receive:

• Charger, Instruction manual, Installation tools,, Twist grip, Pedals, Bell, Zip ties

Dimensions & Weight

• Product size: 175 × 118 × 69 cm (handlebar length: 69 cm)

• Packing size: 150.5 × 30.7 × 88.6 cm

• Net weight: 43.18 kg

• Gross weight: 53.68 kg
